Vertical Axial Flow Pump

  • Applied into

    Aquacultur

    Flood control

    Irrigation

    Wastewater

    Stormwater

    Underground drainage

    Industrial processing

    Advantages

    Custom Design According to Requirements

    Various drive system options are available

    Optimized Design

    Ease of Maintenance and Service

    Alternative Building Materials

    High efficiency

PRODUCT INTRODUCTION



•   Capacity up to 40.000 m3/h

•   Head up to 12m

•   Standard  Motor  Speed: Up to 1500rpm

•   Discharge diameter: 200-1500 mm

The model  V is a vertical  axial flow pump  type  with  an axial single-stage      impeller   consisting   of  a  guide  pipe  assembly. Different  models are available to operate at 50Hz and 60Hz with water  pit  installation.  These  pumps  are  rigidly  constructed  to ensure  low-vibration  operation.  The  hydraulic  design  is always optimized       by   our   continuous   R&D   efforts   to   meet   the requirements of higher efficiency, save energy, high reliability and optimum system design.

BƠM HƯỚNG TRỤC ĐỨNG

BƠM HƯỚNG TRỤC ĐỨNG
Actual image of TS pump mounted on float




BƠM HƯỚNG TRỤC ĐỨNG

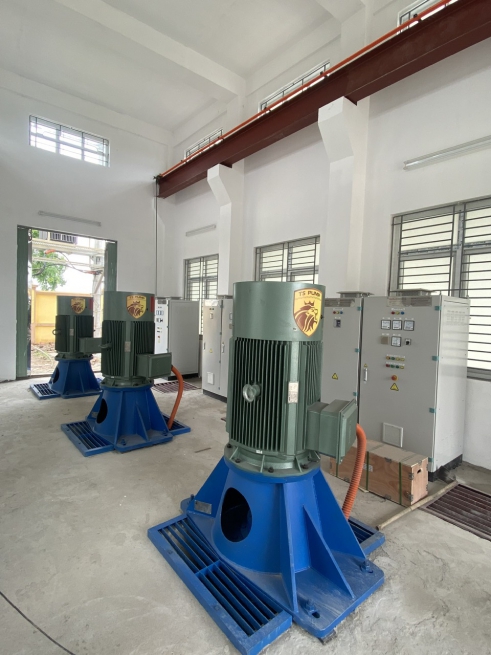

Actual image of TS pump installed on concrete in the station house

BƠM HƯỚNG TRỤC ĐỨNG
Actual image of TS pump mounted on steel or concrete piles

All  TS  pumps  have  peak  efficiencies  depending  on  model  and size. These efficiencies are the result of continuous research and testing.   Our   research   and   development   team   is   constantly optimizing the hydraulic and mechanical design of our pumps with the latest tools for computer simulated flows and stress analysis.



 Custom Design According to Requirements



Our manufacturing plant and our design processes have been established to provide maximum flexibility. TS Pumps will design and fabricate the pump that best suits your specific requirements.



 Optimized Design



The hydraulic and mechanical design is done using Computational Fluid  Dynamics  programs,  tools  that  allow  us  to  optimize  the design of your pumps.



 Alternative Building  Materials



TS pumps can be manufactured with a wide variety of materials that best suit  your  application:  carbon  steel,  cast iron, stainless steel and others.



 Various drive system options are available



Direct drive (D)



Belt drive (B-B3 or B-B5) Gearmotor drive (G).



Ease of Maintenance and Service



Our pumps are completely modular and machined, which allows:



•   That each component  can be repaired  individually  before  re- assembling the equipment.

•   Ensure perfect alignment of the shaft, operation with minimal wear and free of vibrations.
